Dena stands out for the design, construction, and installation of suction and fume treatment systems, meeting the needs of various industrial sectors, from small to large-scale operations.
To ensure effective particulate control, we offer a wide range of technologies, selected based on the type of gas to be treated and the emission limits required by current regulations.
The main components of our systems are entirely manufactured in Dena’s workshops. Thanks to in-house design of filtration units—such as bag filters, cartridge filters, coalescing filters, electrostatic filters, cyclones, and scrubbers—our clients benefit from customized solutions developed to meet their specific needs.
Our extensive experience in production processes and a deep understanding of customer requirements enable us to optimally configure any suction system, delivering tailor-made solutions for various industrial sectors, including:
Energy sector: Fume treatment systems for incineration and waste-to-energy plants, biomass industrial boilers, and gasification plants.
Steel and metalworking sector: Suction and fume treatment systems for die-casting, core-making, and smelting furnaces.
Recycling sector: Systems for the treatment and separation of urban and industrial waste, including dry suction systems to reduce dust generated by shredding, handling, and compacting. We also design wet filtration systems for treating and handling organic waste, as well as other processes.
Chemical, pharmaceutical, and food industries: Suction and fume treatment systems for ovens or steam generators, and heat recovery systems for sugar production facilities.
Thanks to our technical expertise and innovative capabilities, Dena provides systems, including fully customized ones, that ensure efficiency, safety, and environmental compliance, adapting to the challenges of an ever-evolving market.
The GICX cartridge filter, with air intake in the calm chamber, is ideal for heavy-duty applications. The filter comes standard with a fan integrated into the soundproof casing, ensuring maximum compactness of the filtration unit.
These filters are suitable for use in areas with potentially explosive atmospheres and dusts of class ST1, according to the certification string II 3 D Ex tD A22 T200°C -10°C < T < 40°C.

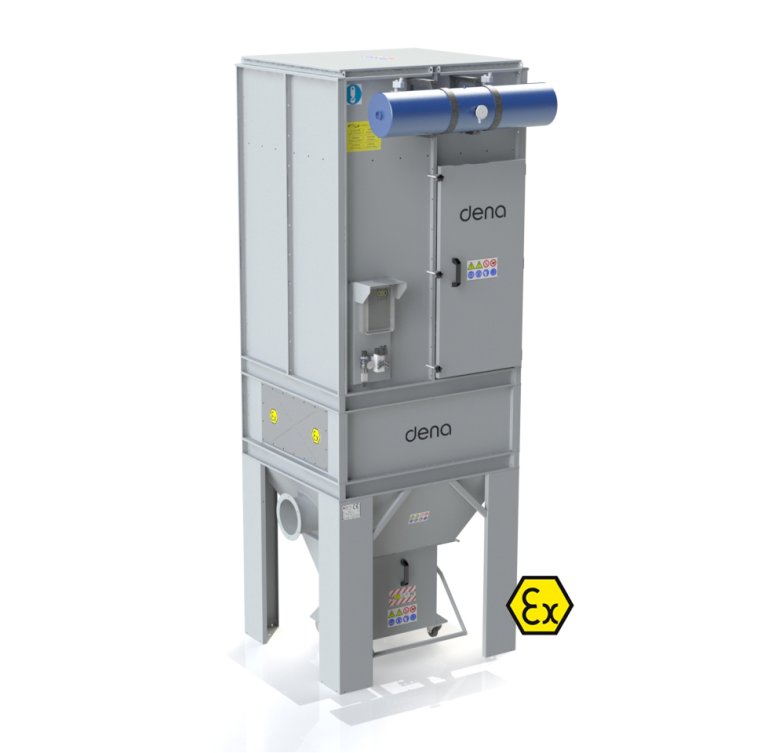

The GIC cartridge filter features the air inlet in the hopper and is made from thick galvanized sheet metal. It is available with a filtering surface ranging from 48 to 699 m².
The GIC-C cartridge filter features air inlet into the settling chamber and is made from thick galvanized sheet metal. It is available with a filtering surface ranging from 48 to 699 m².
These filters are suitable for use in areas with potentially explosive atmospheres and dusts of class ST1, according to the certification string II 3 D Ex tD A22 T200°C -10°C < T < 40°C.
These filters are suitable for use in areas with potentially explosive atmospheres and dusts of class ST1, according to the certification string II 3 D Ex tD A22 T200°C -10°C < T < 40°C.
The GIC-XS cartridge filter features air inlet into the settling chamber and is made from thick galvanized sheet metal. It is ideal for intensive use.
These filters are suitable for use in areas with potentially explosive atmospheres and dusts of class ST1, according to the certification string II 3 D Ex tD A22 T200°C -10°C < T < 40°C.
The cylindrical cartridge filter CC-327 is a highly durable solution for industrial filtration. Made from thick galvanized sheet metal, it withstands pressures up to -20,000 Pa. The tangential air inlet improves efficiency, and the cartridges are easily replaceable from the top.
These filters are suitable for use in areas with potentially explosive atmospheres and dusts of class ST1, according to the certification string II 3 D Ex tD A22 T200°C -10°C < T < 40°C.
The DEPRO cartridge filter is the result of over 50 years of research and development focused on producing equipment that combines quality, cutting-edge design, and competitive pricing.
These filters are suitable for use in areas with potentially explosive atmospheres and dusts of class ST1, according to the certification string II 3 D Ex tD A22 T200°C -10°C < T < 40°C.
The DEDUST-T bag filter, with air inlet in the hopper, is constructed from sturdy galvanized sheet metal. It is available with a filtering surface ranging from 19 to 699 m².
These filters are suitable for use in areas with potentially explosive atmospheres and ST1 class dust according to the certification string II 3 D Ex tD A22 T200°C -10°C < T <40°C.
The DEDUST-C bag filter, with air inlet into the settling chamber, is constructed from sturdy galvanized sheet metal. It is available with a filtering surface ranging from 19 to 699 m².
These filters are suitable for use in areas with potentially explosive atmospheres and ST1 class dust according to the certification string II 3 D Ex tD A22 T200°C -10°C < T <40°C.
The GIMS bag filter with air inlet into the settling chamber is made of galvanized sheet metal. It is generally used in less demanding working conditions, such as processes with cold, dry, non-sticky, and non-abrasive dust.
These filters are suitable for use in areas with potentially explosive atmospheres and ST1 class dust according to the certification string II 3 D Ex tD A22 T200°C -10°C < T <40°C.
The GIM150 features the air inlet in the settling chamber and 152 mm diameter filtering sleeves. Manufactured with thick galvanized sheet steel, it includes a quick-release dust collection container.
These filters are suitable for use in areas with potentially explosive atmospheres and ST1 class dust according to the certification string II 3 D Ex tD A22 T200°C -10°C < T <40°C.
The GIM-HT high-temperature filter is ideal for biomass boiler filtration and can be installed either internally or externally. Sleeve extraction is provided from above, and the structure includes a guardrail and ladder.
The cylindrical dust filter FICO is specifically designed to withstand negative pressures up to -20,000 Pa.
These filters are suitable for use in areas with potentially explosive atmospheres and ST1 class dust according to the certification string II 3 D Ex tD A22 T200°C -10°C < T <40°C.
The BH-W bag filter is designed for large-scale applications, typically exceeding 400 m².

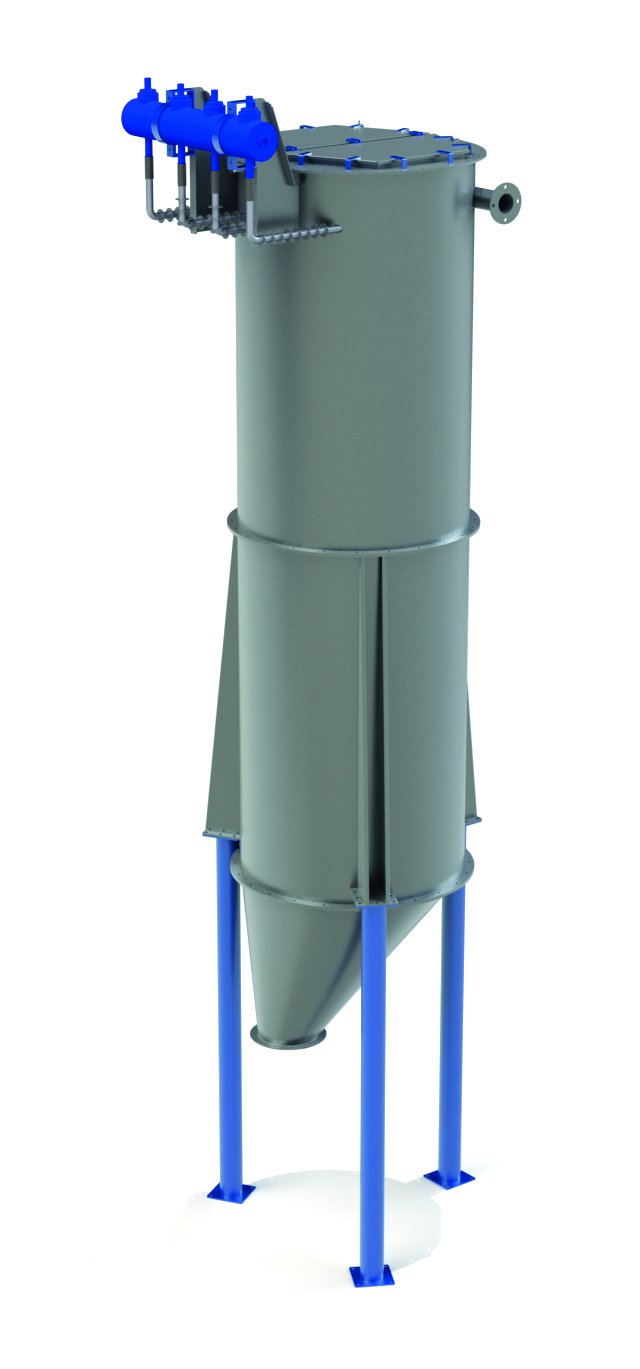

The GICA dust collector, designed for high-temperature particulate filtration, features a tangential air inlet in the hopper, ceramic filter candles, and an automatic cleaning system for consistent performance.

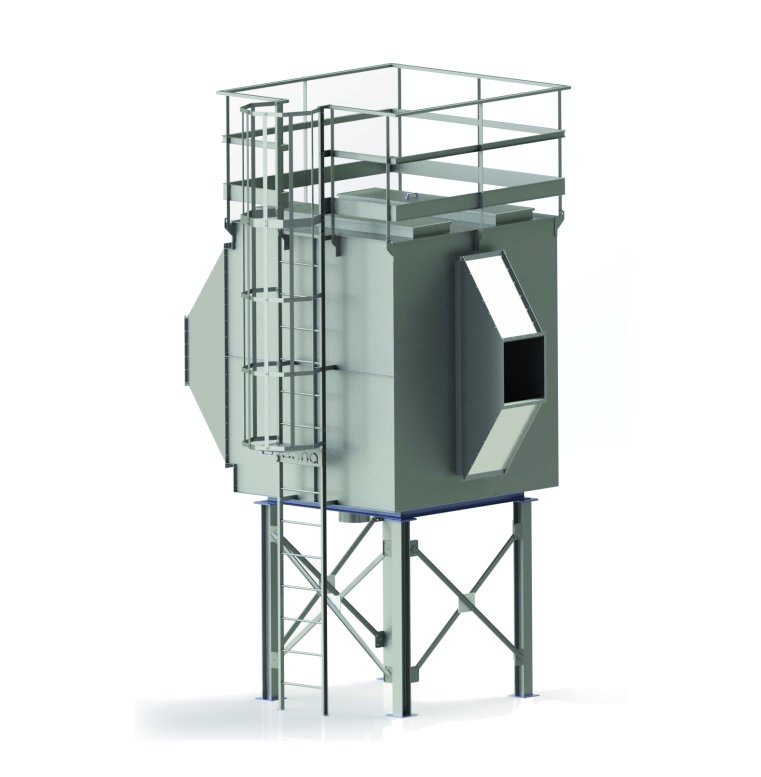

The COMBY activated carbon filter with vertical static beds allows for the adsorption of volatile organic compounds, gases, and other specific pollutants.
