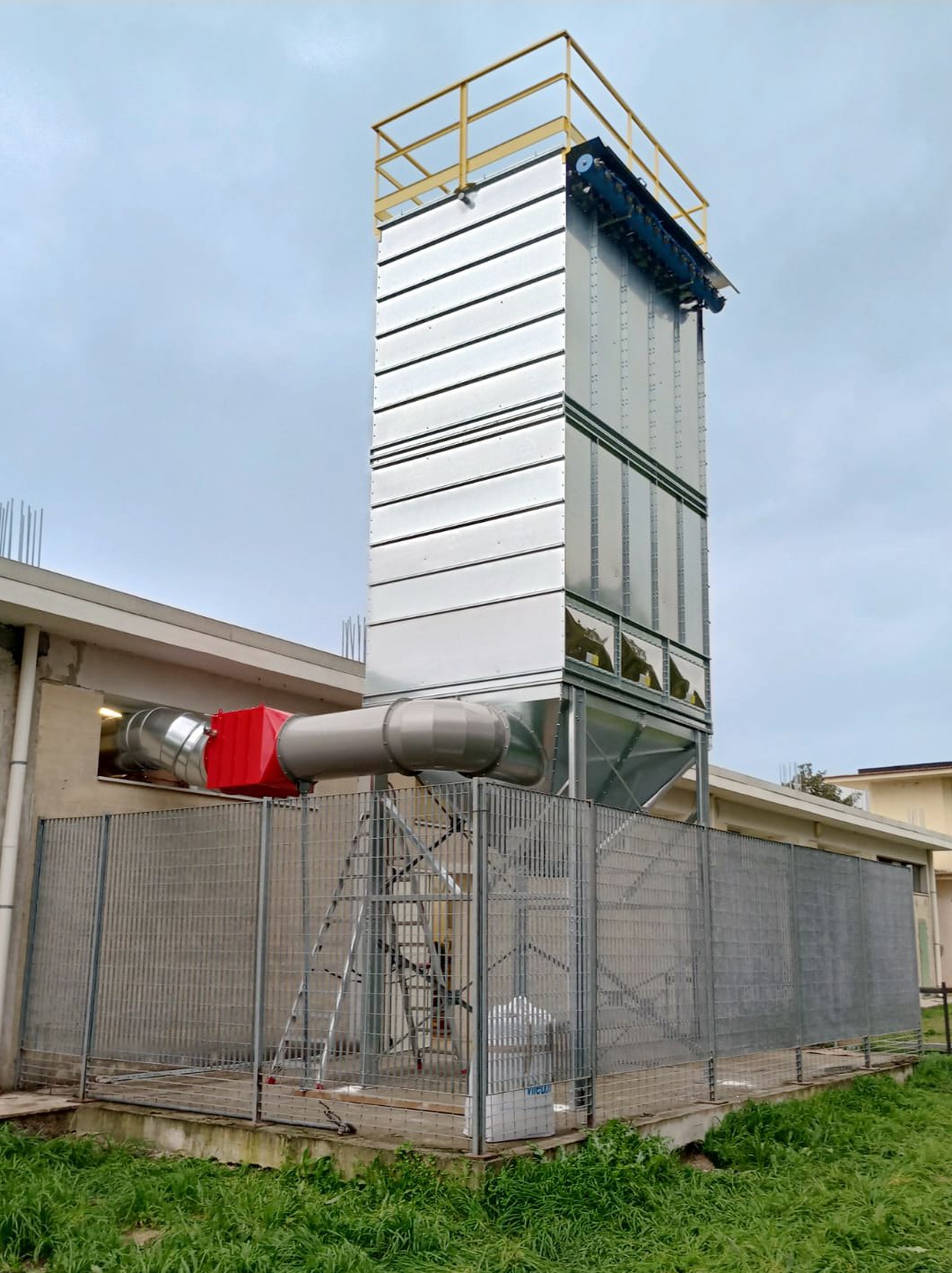

The GIM150 ATEX model has the air intake into the settling chamber and sleeves with a diameter of 152 mm. Made of sturdy galvanized sheet metal, it is supplied with one or more containers for dust collection with quick release.
Some options include various discharge systems, sleeve heights of up to 4 meters, and air distribution options for the inlet with lateral, central, or frontal settling chamber.
It features automatic cleaning with compressed air jets, managed by an electronic economizer that optimizes blow times and intervals using a differential pressure sensor.
The discharge system operates with a screw conveyor and rotary valve. It is built with a standard safety railing ladder.
Standard
- Explosion vent panels
- Automatic cleaning system with compressed air
- Discharge system with rotary valve
- Sturdy sheet metal construction
- Filter cleaning economizer
- Guardrail and ladder
Optional
- Stainless steel construction
- Discharge system with rotary valve
- Contaminated air plenum
- Powder coating
- HEPA filter
