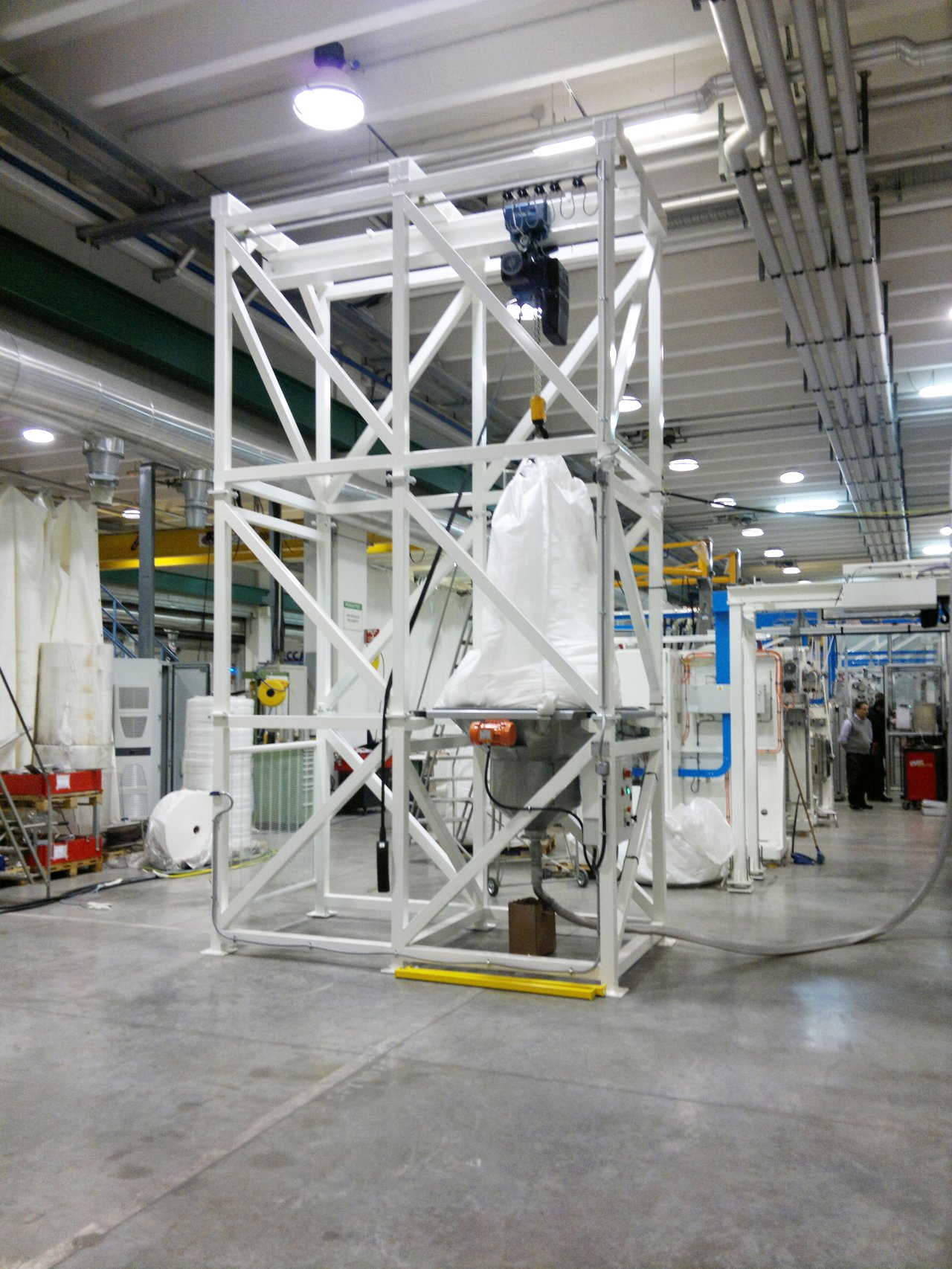

SVB

The SVB big bag emptying station with hoist allows for easy and quick emptying of the contents of big bags, preventing material dispersion into the air. Operators are protected from the accidental fall of the big bag during the emptying process. It can lift big bags weighing up to a maximum of 2000 kg, optimizing the emptying time.

Request a quotation

svb-datasheet-ita.pdf

Big bag emptying stations can be classified based on the method of handling the bag and offer numerous accessories, including:

Bottom cutting systems for disposable big bags
Motorized closure system for the emptying station
Locking system for the big bag spout
Weighing and dosing systems for the extracted product

Operating Principle

Using the control panel, the big bag is lifted from the front of the structure, moved over the hopper, and lowered until it adheres to the gasket. The bag is automatically cut by the cutting system and is ready to begin the emptying cycle.

Construction Features

The structure is designed using Finite Element Analysis (FEM), complying with UNI EN 288-4 welding process standards. It is made of carbon steel or stainless steel, while the vibrating hopper is made of stainless steel 304 or 316L. The unit is equipped with a vibratory motor, Demag hoist, fabric vent filter, integrated electrical panel, EPDM rubber or silicone gasket, and an inspection door on the hopper.

Optional

Cutting systems (bottom side)
Closure system (motorized valve)
Locking system for the bottom of the bag
Weighing and/or dosing system
ATEX version
Stainless steel version
